More operational safety. Less effort.
Smart plant operation with W|C|S®
The W|C|S® WaterCareSystem consists of the W|C|S® Board (plant engineering) and the W|C|S® e-Service. Only through this combination is the full range of services available — including data collection, data analysis, monthly and annual reports and continuous support. The W|C|S® Dashboard allows you to view water data in real time, anytime, anywhere. Well protected with W|C|S® e-Secure.

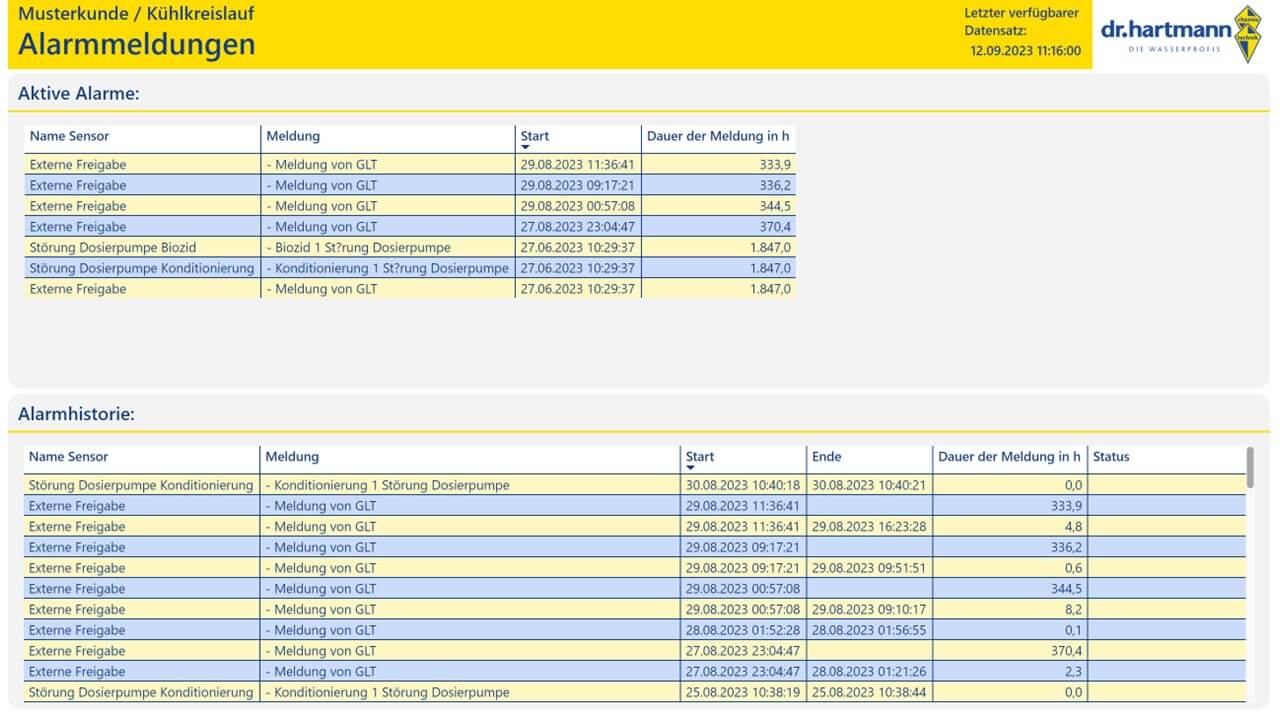

Monitoring and alarm surveillance

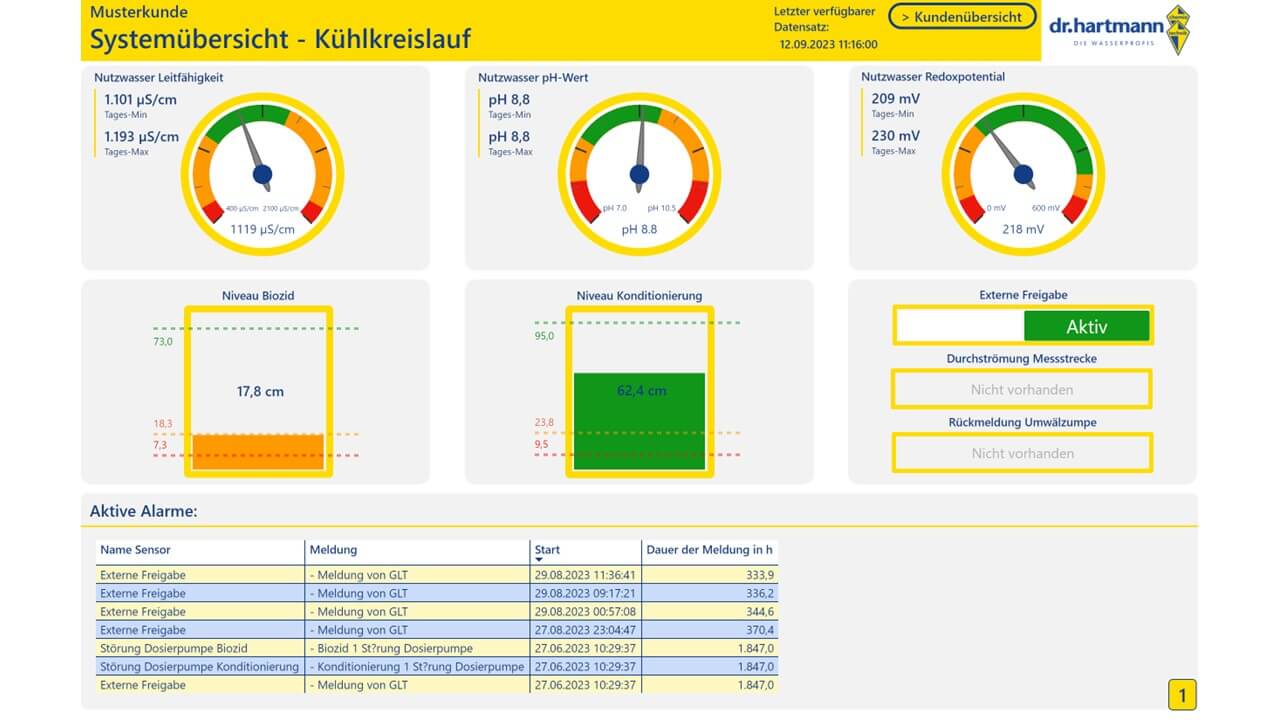

W|C|S® -Dashboard
Simple data retrieval and overview

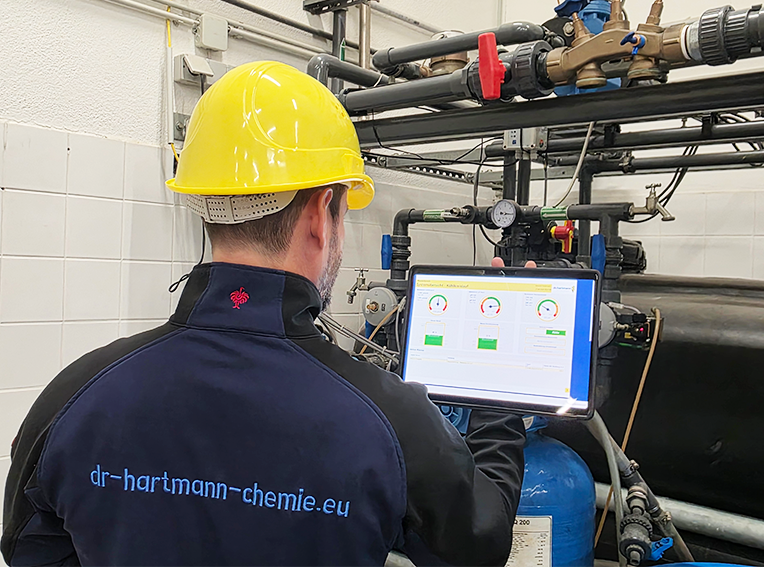

With the W|C|S® WaterCareSystem, the operator has access to up-to-date monitoring on the dashboard at any time. The dashboard is fully functional on mobile devices at all times. The operator also receives a monthly status report with recommendations and a traffic light system, which can be filed in the operation logbook.

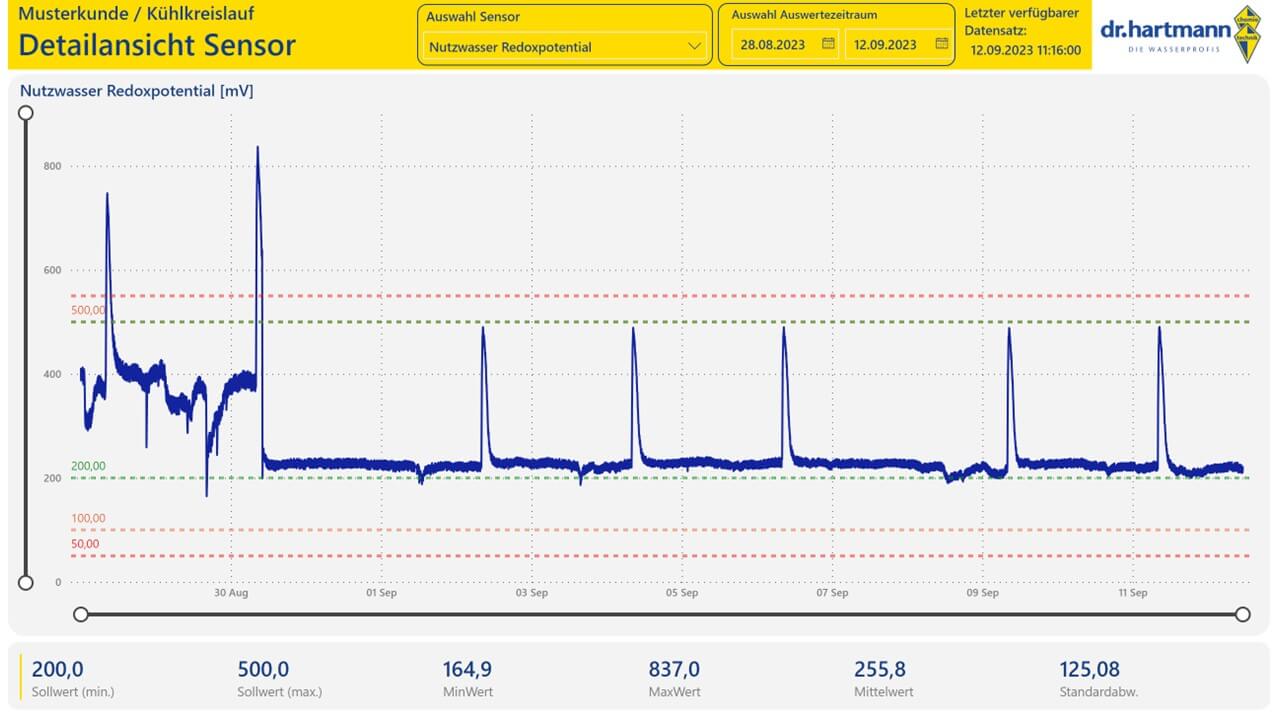

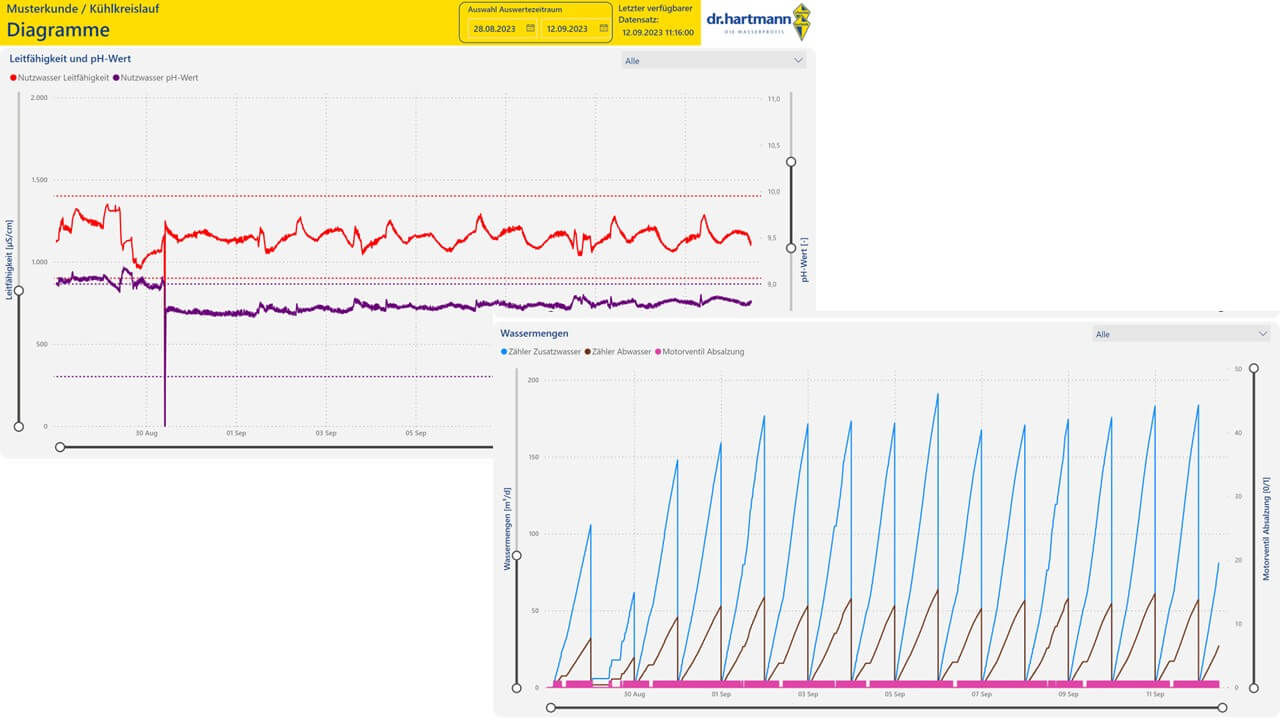

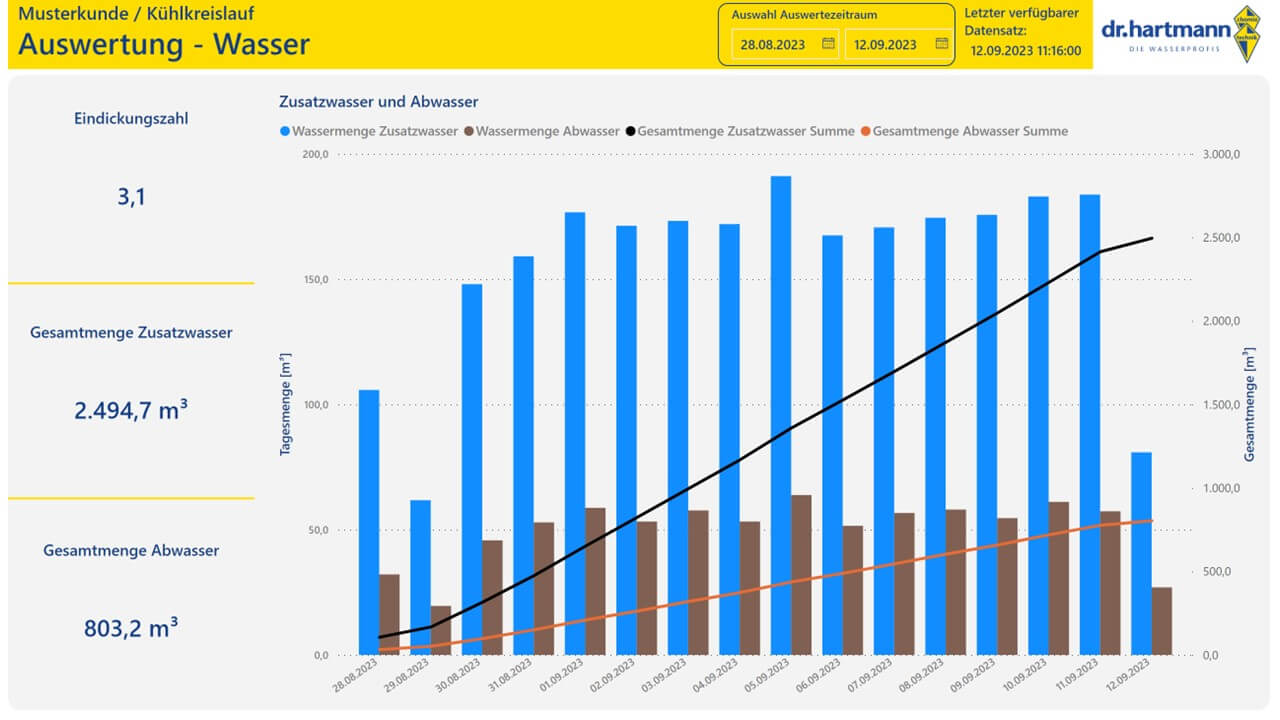

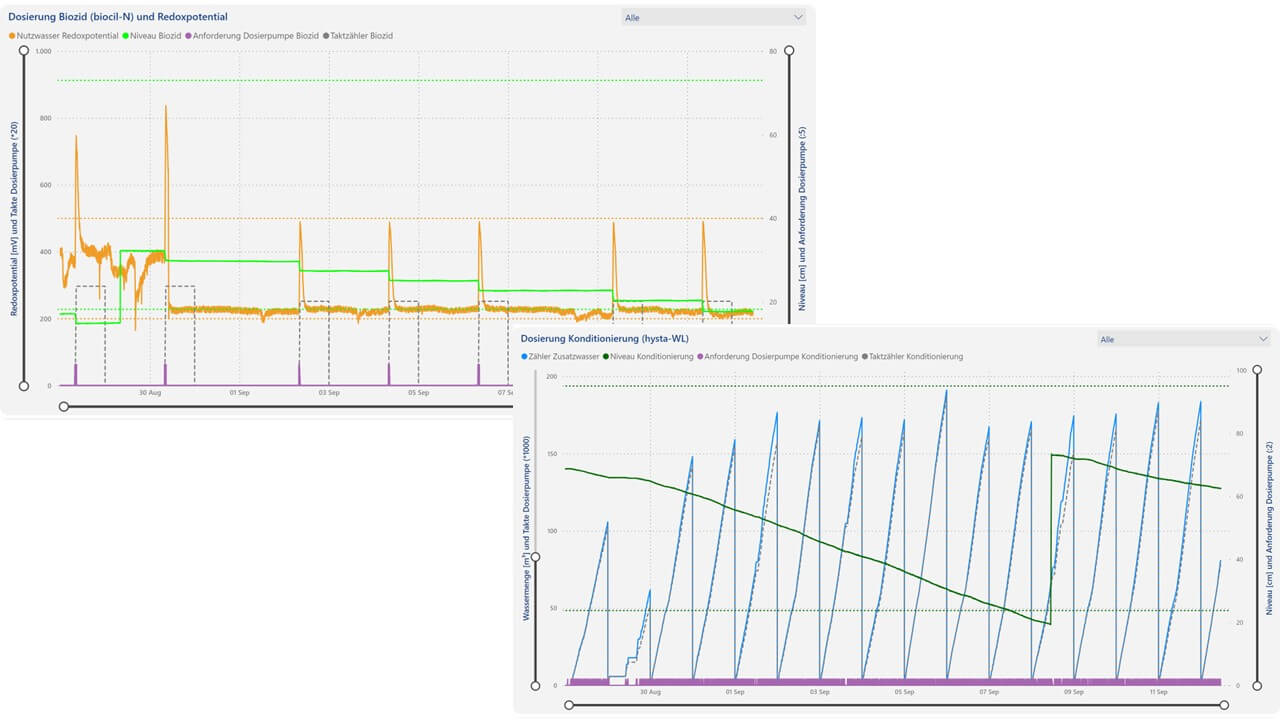

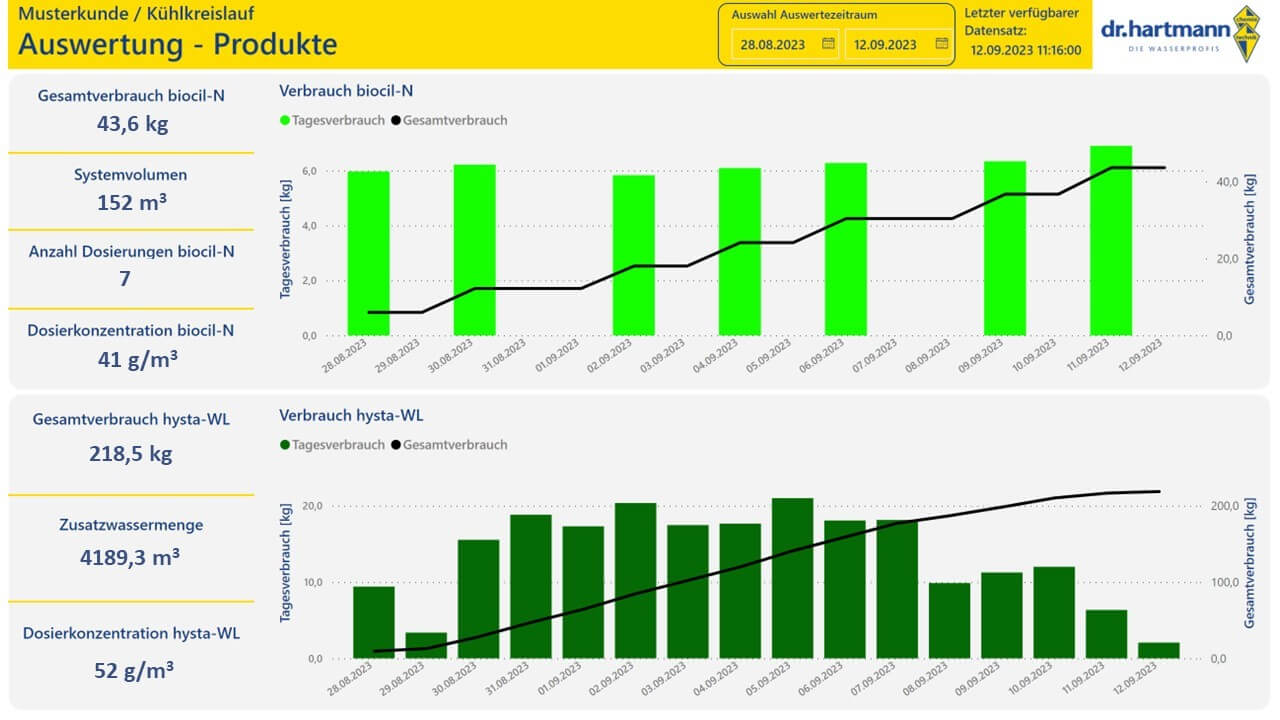

Water data can also be viewed on any internet-connected device, anywhere and at any time, using graphical and statistical dashboards — keeping your system under observation around the clock.
Online-based water management
W|C|S®-e-Service
We are here when you need us
W|C|S® e-Service: Fast, competent and proactive support for operators of process water systems by water experts, including report management.
- Fast expert assistance when deviations from target values occur
- Active support by experienced water experts
- Quick implementation of corrective measures
- Process optimisation resulting in savings of water, energy, chemicals and working time
- Value preservation and extension of the service life of evaporative cooling systems
- Improvement of process safety and hygiene quality
- Customised alarm management
- Time and cost savings for the operator through fewer system inspections and reduced documentation effort
- Proof that manufacturer specifications regarding water quality have been met
Compliance with legal regulations
Report management in accordance with the 42nd BImSchV
Time and cost savings for the operator
Maintaining an operation logbook is legally required for every evaporative cooling system under the 42nd BImSchV. When using W|C|S®, the operator receives a monthly status report with recommendations and a traffic light system, which can be filed in the operation logbook. A cloud-based operation logbook is also available.
Active support in complying with the 42nd BImSchV / VDI 2047 Sheet 2 by experienced water experts facilitates adherence to the guidelines, resulting in time and cost savings for the operator.

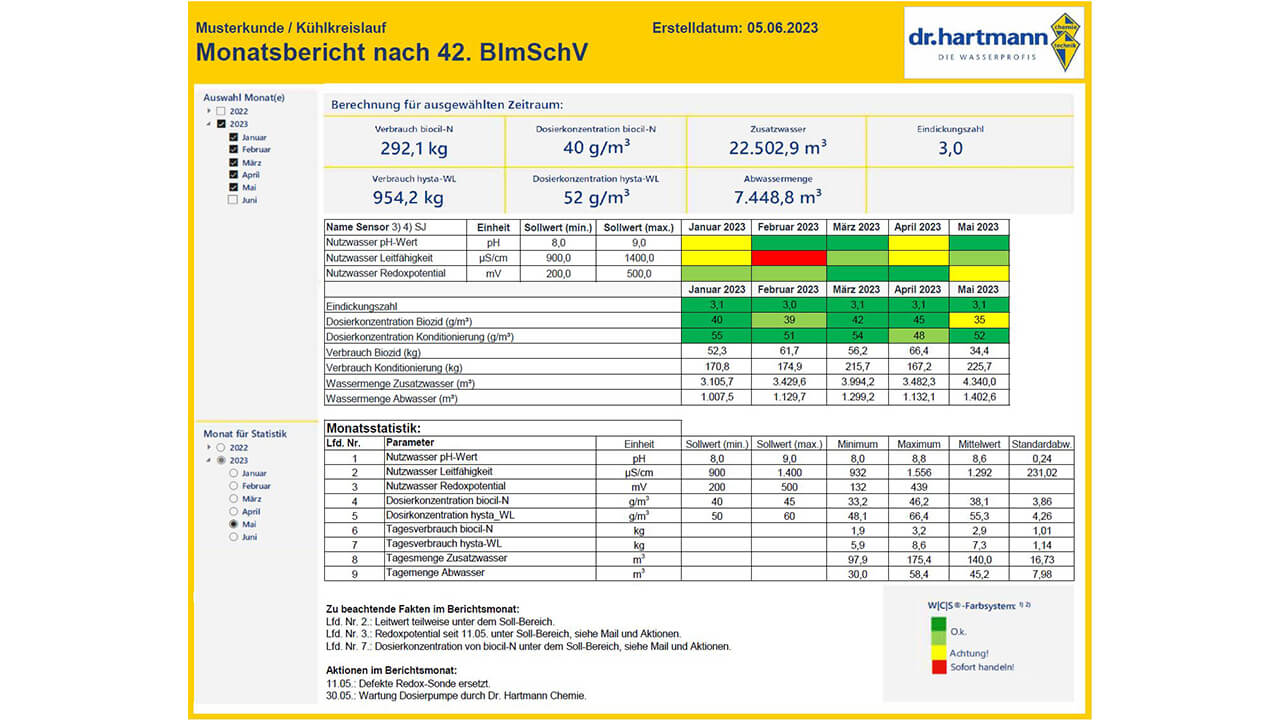

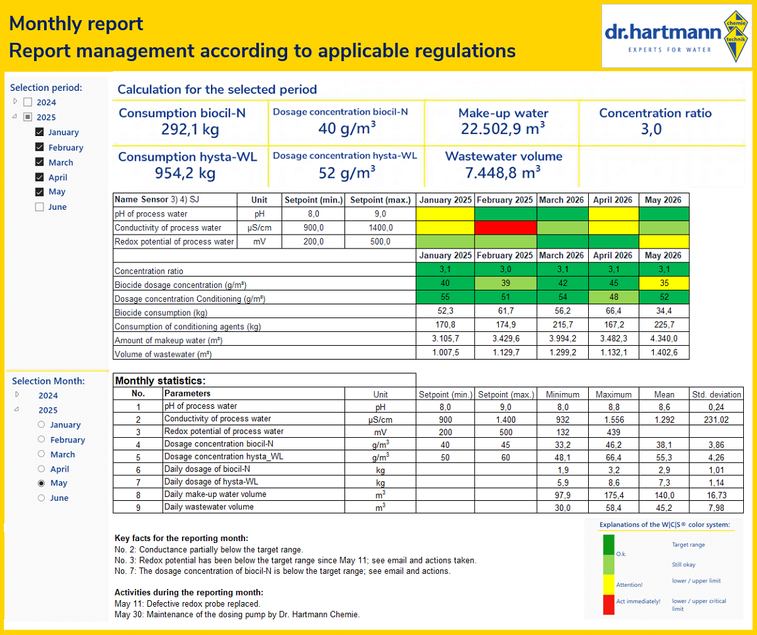

The monthly report includes:
- Monthly summary
- Trend analysis / Charts
- Annual / Activity overview
- Traffic light system
- Recommendations for action
Digital security
W|C|S® e-Secure for your data security
In accordance with leading security standards
W|C|S® e-Secure offers comprehensive security according to the highest industry standards and practices for the storage, processing and transmission of all data — guaranteeing secure remote monitoring of your system's water data.
- Together with its certified partners, Dr. Hartmann Chemietechnik protects all applications and data throughout the entire W|C|S® process, from hardware to the W|C|S® dashboard — keeping your data safe from unauthorised access.
- W|C|S® e-Secure strictly follows leading security standards such as ISO/IEC 27001:2013, ISO/IEC 27017:2015 and Industry 4.0 best practices.
- W|C|S® e-Secure uses encrypted transmission protocols based on TLS (Transport Layer Security) and IPsec (Internet Protocol Security).
- W|C|S® e-Secure transmits data with end-to-end encryption, preferably via mobile networks, independent of client-side IT systems.
- W|C|S® e-Secure utilises the latest and most secure cloud-based systems.
- W|C|S®e-Secure stores measurement data in German data centres.
- Only authorised operational personnel with access rights can view the data.
Digital security at a glance:
Network security
Data transmission
- Secured communication protocols
- VPN data traffic encrypted via TLS
- Private network
- Hosted on a secure Microsoft Azure cloud with location in Germany
Cloud security
Data analysis
- Secure database in the cloud
- Secured communication protocol HTTPS
- User authentication
- User access control, two-factor authentication
Measuring and controlling process water

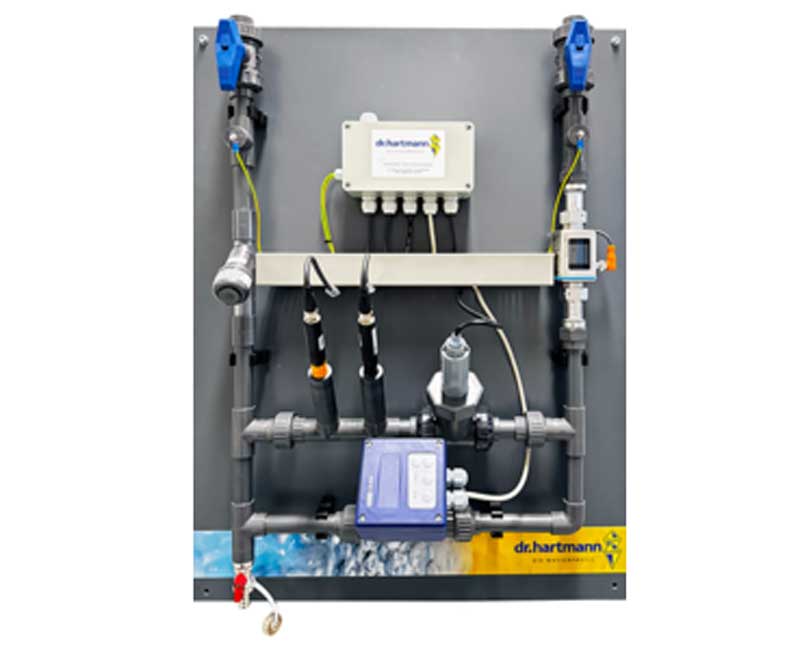

W|C|S® Board – the hardware
The foundation for successful water management. Capture, control and transmit.
The W|C|S® base plate, integrated into the bypass of the evaporative cooling system or the system water circuit, is designed to measure all necessary data for evaluating process water quality.
In addition to minute-precise recording of all relevant data from the evaporative cooling system, the W|C|S® Board controls blowdown, the dosing of conditioning agents and biocides, including interlocking of the blowdown valve.
The combination with DHC-Trace® technology enhances the capabilities of the W|C|S® WaterCareSystem by determining the chemical product content — helping to use the required chemical products sustainably.
W|C|S® Control Cabinet – Control & Data Transmission
Recording, Controlling and Forwarding

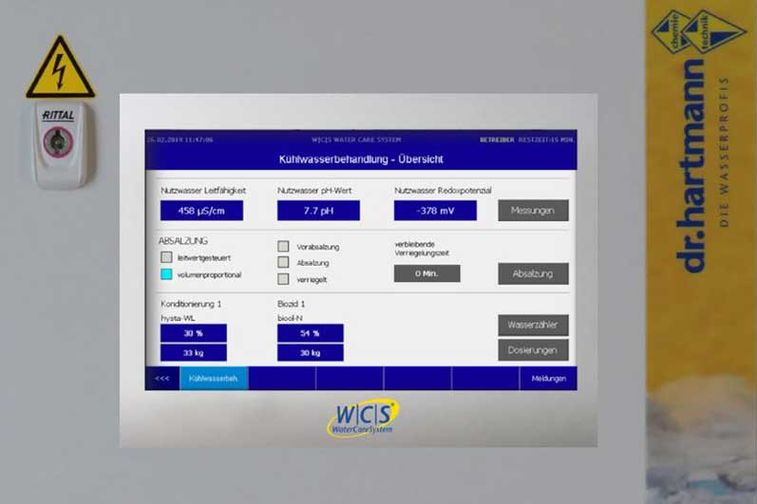

The intelligent W|C|S® control cabinet with a 7'' color touchscreen fulfills central tasks. In addition to data acquisition, control, and storage of measurement data, the W|C|S® control cabinet also forwards all recorded data to the W|C|S® server of Dr. Hartmann Chemietechnik.
- Measurement of at least 17 parameters for process water and water treatment systems
- Measurement of make-up and wastewater volume
- Control of the blowdown valve (conductivity-controlled or volume-controlled)
- Control of dosing pumps (biocide, inhibitors), optional additional dosing pumps
- Intelligent control with large touchscreen and various expansion options
- Online product measurement with DHC-Trace® technology (optional)
- W|C|S® board can be used as a multi-parameter system without e-Service
- W|C|S® e-Service supports operating personnel in their daily work
Contact us—together, we’ll optimize your water management to perfectly meet your individual needs.
